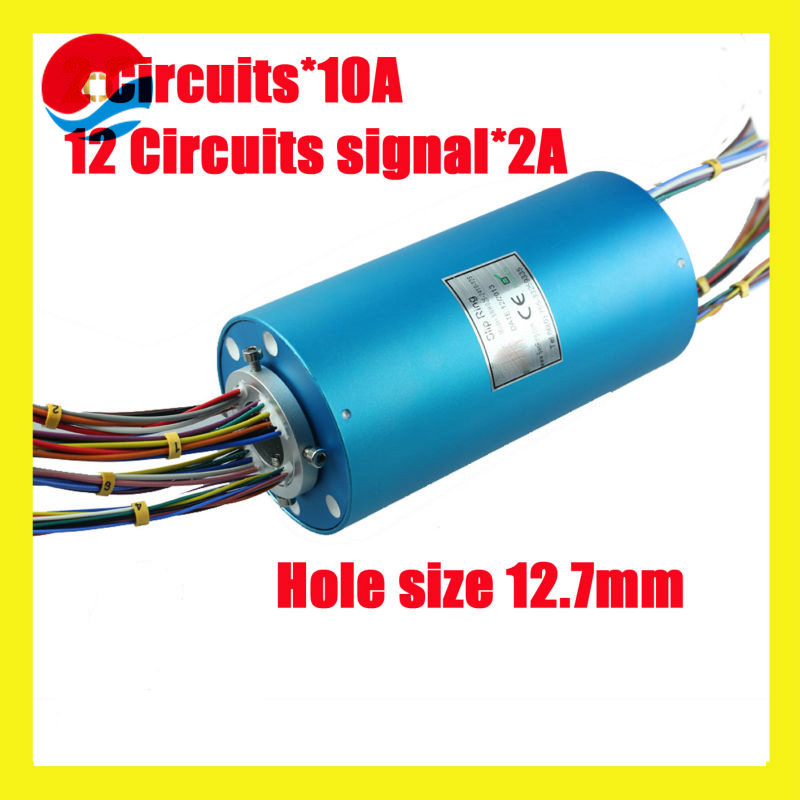

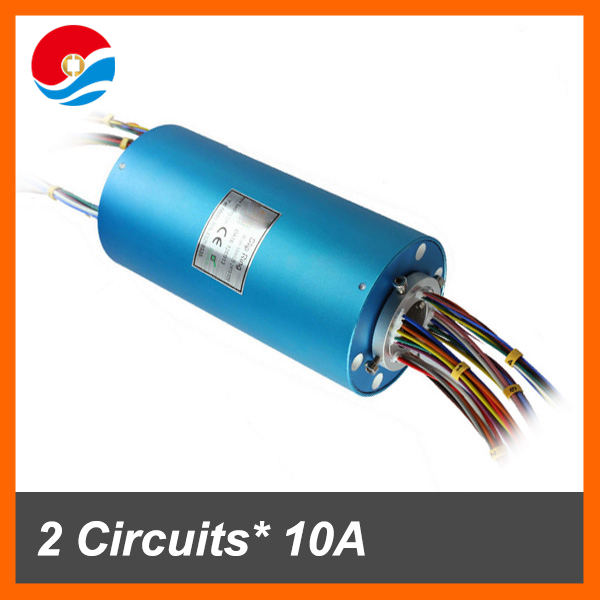

Electrical slip ring assembly 24 circuits 10A+12 circuits signal of hole size 12.7mm

Min.Order Quantity:1 Piece/Pieces
Supply Ability:50000 Piece/Pieces per Month
Port:shenzhen
Payment Terms:L/C,T/T,Western Union,paypal
Product description: Electrical slip ring assembly 24 circuits 10A+12 circuits signal of hole size 12.7mm
INQUIRY

Quick Details

Place of Origin: Guangdong, China (Mainland)
Brand Name: SenRing
Model Number: SNH012-2410-12S
Hole Size(mm): 12.7mm
Outer Dia(mm): 56mm
Circuits: 12+24 circuits
Volt AC/DC(V): 600Vac/240Vdc
Current(A): 2A/10A
Speed(rpm): 600RPM

Packaging & Delivery

Packaging Details:	Standard Export carton Package
Delivery Detail:	Sample 2 days / Order depends on quanlity

The SNH012, with 12.7mm through bore size and compact 56mm outside diameter, uses SenRing's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates.

SNH012(Standard) Dimensions

SNH012 Specifications(Standard)

Contact Material
Precious metal brush,Silver plated rings
Current Rating
2A,10A/per circuit
Number of Circuits
12+24 circuits
Operating Speed
600 rpm* continuous
Lead Wire
UL Teflon® Awg28,Awg22,Awg16(200 mm)
Voltage
400 VAC
Operating Temp.
-40°C to 80°C
Working Humidity
60%RH
Torque
Approx. ≤8.25 g·m (for reference )
Dielectric Strength
≥800V&50Hz between each circuit
Insulation Resistance
700MΩ&400VDC
Noise
Less than 50 mΩ & 6 VDC, 50 mA, 5 rpm
Housing Material
Aluminum Alloy
Protection
IP51

Lead Wire Color Code

Circuit No.	1	2	3	4	5	5
Color	BLK	RED	YEL	GRN	BLU	WIT
Circuit No.	7	8	9	10	11	12
Color	BRN	ORG	GRAY	CLAR	WIT-RED	WIT-RED
12 circuits/per group, groups with tags

Type Application

Industrial machinery	Filling equipment
Exhibit / display equipment	Medical equipment
machining centerse	rotary index tables
Mechanical arm	Surgery lamp
heavy equipment turrets or cable reels	Revolving door
Packaging machine	Coiling machine
test equipment	packaging machines
