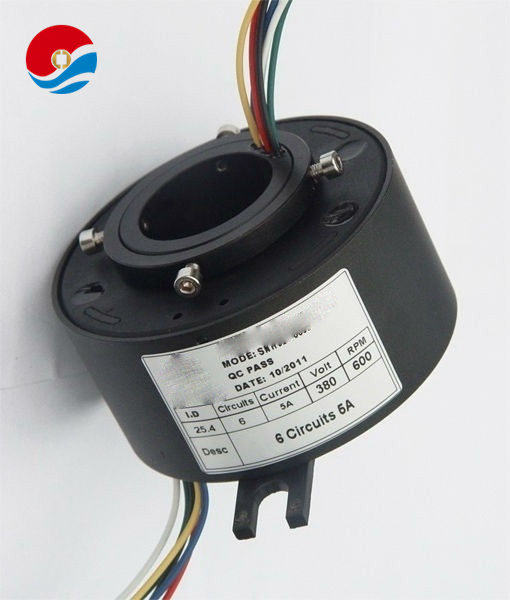

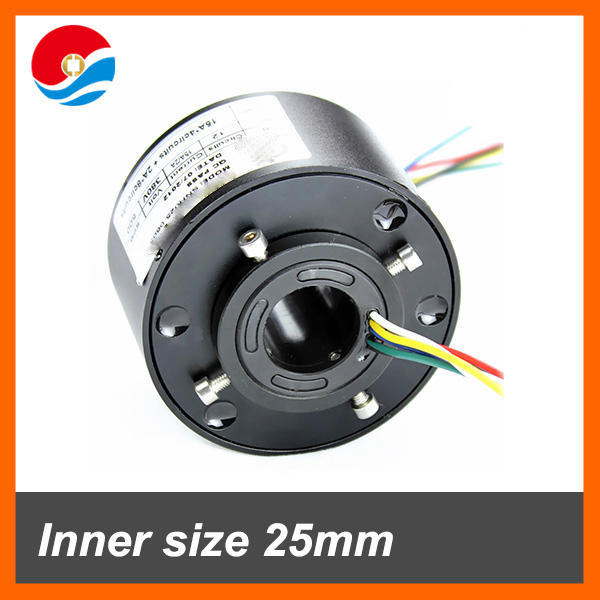

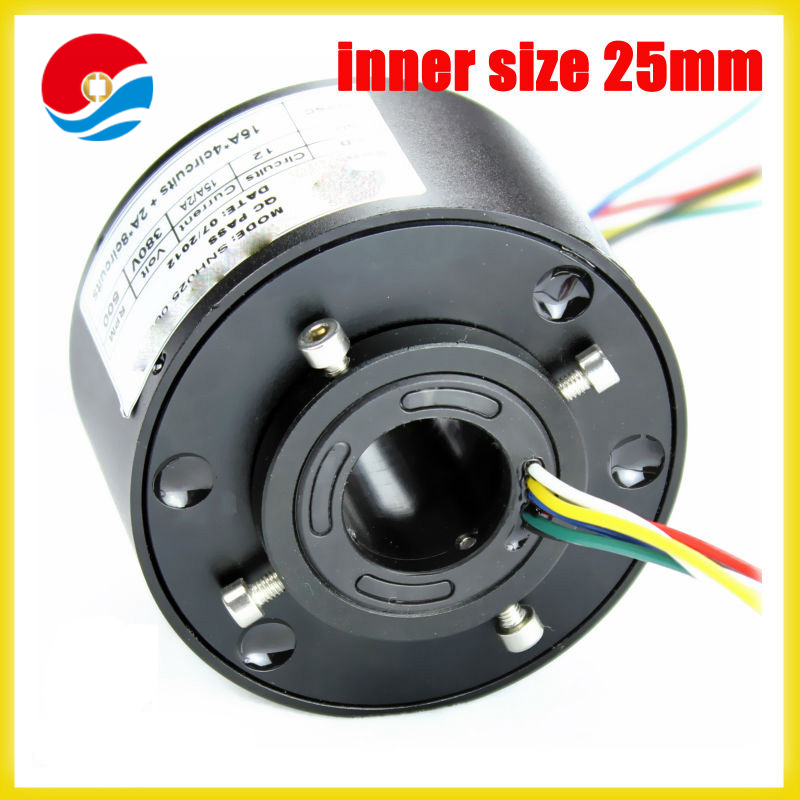

SNH025
Through-bore size: 25.4mm ,
2,3,4,6,12,18,24,30,36,48 and 56 circuit version

Request A Quote
SNH025 Installation Guide

The SNH025, with 25.4mm through bore size and compact 86mm outside diameter, uses SenRing's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates.

SNH025(Standard) Dimensions

Download Drawings

*Please note: Outer Diameter should be 99mm when circuits > 48

SNH025 Specifications(Standard)

• Contact Material

  Precious metal brush,Silver plated rings

• Current Rating

  2A,5A,10A,20A/per circuit

• Number of Circuits

  2, 3,  4,  6,  12,  18,  24,  30,  36,  48,  56

• Operating Speed

  600 rpm* continuous

• Lead Wire

  UL Teflon® Awg28,Awg22,Awg16,Awg10 (200 mm)

• Voltage

  600 VAC

• Operating Temp.

  -40°C to 80°C

• Working Humidity

  60%RH

• Torque

  Approx. ≤8.75 g·m (for reference )

• Dielectric Strength

  ≥1000V@50Hz between each circuit

• Insulation Resistance

  1000MΩ@ 600VDC

• Noise

  Less than 10 mΩ @ 6 VDC, 50 mA, 5 rpm

• Housing Material

  Aluminum Alloy

• Protection

  IP54

*Please note that the operational life of the unit is dependent upon rotational speed, environment and temperature.

Options

• Longer lead lengths available
• Power and signal combinations
• Rotor and stator lead exits
• gold alloy brush,Gold plated rings
• IP65,IP68 are optional
• flange mounting is optional

SNH025(flange mounting-Optional)Dimensions

Download Drawings

Part Number Introduction

*Note: in below table,X- specifies current capacity of power circuits.
10, 15 and 20 amp available. See ordering instructions for details

Part.No	Power Circuits (See Notes)	Signal Circuits (2A)	Total Circuits	L--(mm)
SNH025-02X	2	---	2	32
SNH025-02s	---	2	2	32
SNH025-03X	3	---	3	36
SNH025-03s	---	3	3	36
SNH025-04X	4	---	4	40
SNH025-04s	---	4	4	40
SNH025-02X-02s	2	2	4	40
Part.No	Power Circuits (See Notes)	Signal(2A)	Total Circuits	L--(mm)
SNH025-06X	6	---	6	48
SNH025-06s	---	6	6	48
SNH025-02X-04s	2	4	6	48
SNH025-04X-02s	4	2	6	48
SNH025-12X	12	---	12	72
SNH025-12s	---	12	12	72
SNH025-06X-06s	6	6	12	72
SNH025-18X	18	---	18	96
SNH025-18s	---	18	18	96
SNH025-06X-12s	6	12	18	96
SNH025-12X-06s	12	6	18	96
Part.No	Power Circuits (See Notes)	Signal(2A)	Total Circuits	L--(mm)
SNH025-24X	24	---	24	120
SNH025-24s	---	24	24	120
SNH025-12X-12s	12	12	24	120
SNH025-06X-18s	6	18	24	120
SNH025-30X	30	---	30	144
SNH025-18X-12s	18	12	30	144
SNH025-12X-18s	12	18	30	144
SNH025-06X-24s	6	24	30	144
Part.No	Power Circuits (See Notes)	Signal(2A)	Total Circuits	L--(mm)
SNH025-36X	36	---	36	168
SNH025-36s	---	36	36	168
SNH025-24X-12s	24	12	36	168
SNH025-12X-24s	12	24	36	168
SNH025-48s	---	48	48	216
SNH025-24X-24s	---	48	48	216
SNH025-12X-36s	---	48	48	216
SNH025-56s	---	56	56	248
*Note: X- specifies current capacity of power circuits. 10, 15 and 20 amp available. See ordering instructions for details. Max 96 channels available on request.

I Can't See A Part Number to Match?
Our Modular design,off-the-shelf manufacturing techniques and standard off-the-shelf slip ring component assure products's reliability and quick delivery.
If you can't see a part number to match your requiremnts in above standard models. Please fill the next blank to make a new part number:
SNH025 - _____ _____ - _____ _____ - D ____ - L ____; and email to us:
(* D - outer diameter as you require.  L - Length as you require, If standard, Please leave out, Standard L(mm)=24+circuits*4)
For example:
SNH025-06 10-17 S = [10A each @ 6 circuits + 2A(signal) each @ 17 circuits, OD(86mm) and L(116mm)]
SNH025-06 10-17 S-D80-L90 = [10A each @ 6 circuits + 2A(signal) each @ 17 circuits, OD(80mm) and L(90mm)]
SNH025-06 30-17 S-D110-L130 = [30A each @ 6 circuits + 2A(signal) each @ 17 circuits, OD(110mm) and L(130mm)]
Any options as above are available, Please descript it in your email.

Description
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. SenRing offer a full line of standard products for a wide variety of applications, as well as complete specialized rotating solution & rotate joint design & build services.
SNH025 can be used in any electromechanical system that requires unrestrained, intermittent, or continuous rotation while transferring power or data.The 25.4mm unobstructed through-bore provides routing space for hydraulics, pneumatics or for a concentric shaft mount and a compact 86mm outside diameter for restricted space applications.
The SNH025 uses SenRing's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates. In addition, fiber brushes do not require lubrication and produce virtually no wear debris.The precious metal contacts are maintenance free and provide long life.

Features

• 25.4mm(1 inch) through-bore size.
• Compact 86mm(99mm when circuits>48) outside diameter; smaller OD, customized on request
• 2,3,4, 6, 12, 18, 24, 30, 36, 48, 56 circuits are standard, others,need to be customized
• Signals, 5Amp, 10Amp, 20Amp current version; >24Amp, customized on request
• Speeds up to 600 rpm continuous, >600rpm, need to be customized
• Steel bearings and machined shaft and housing for harsh environments
• Collar mounting is standard; flange mounting is optional
• Various lead exits are available
• Silver plated rings are standard. Gold plated, optional.
• precious metal brush are standard. gold alloy brush, optional.
• Awg28,Awg22,Awg16,Awg10, 200mm lead wire are standard, >200mm is optional.
• Continuous 360° rotation of power or data signals
• Protection grade IP54 is standard, IP65,IP68, optional
• Aluminum alloy housing material

Benefits

• Transfers control and data signals
• Fiber brush technology provides maintenance-free operation (no lubrication required)
• Modular design meets special requirements through off-the-shelf manufacturing techniques
• Customized configurations for your application
• Quick shippments

Lead Wire Color Code

Circuit No.	1	2	3	4	5	5
Color	BLK	RED	YEL	GRN	BLU	WIT
Circuit No.	7	8	9	10	11	12
Color	BRN	ORG	GRAY	CLAR	WIT-RED	WIT-RED
12 circuits/per group, groups with tags

Type Application

Industrial machinery	Filling equipment
Exhibit / display equipment	Medical equipment
machining centerse	rotary index tables
Mechanical arm	Surgery lamp
heavy equipment turrets or cable reels	Revolving door
Packaging machine	Coiling machine
test equipment	packaging machines
