SNH025

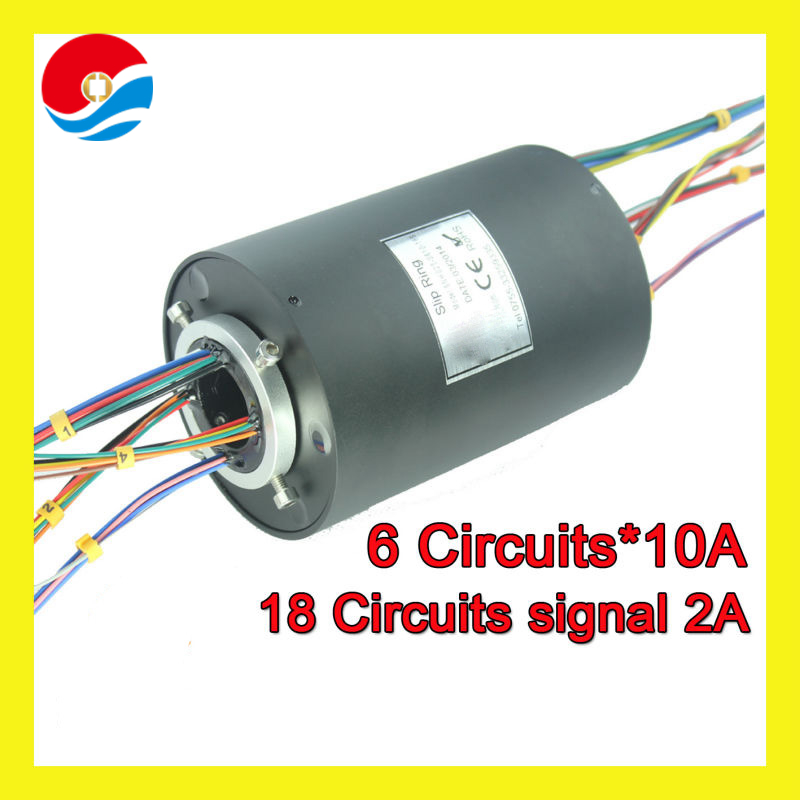

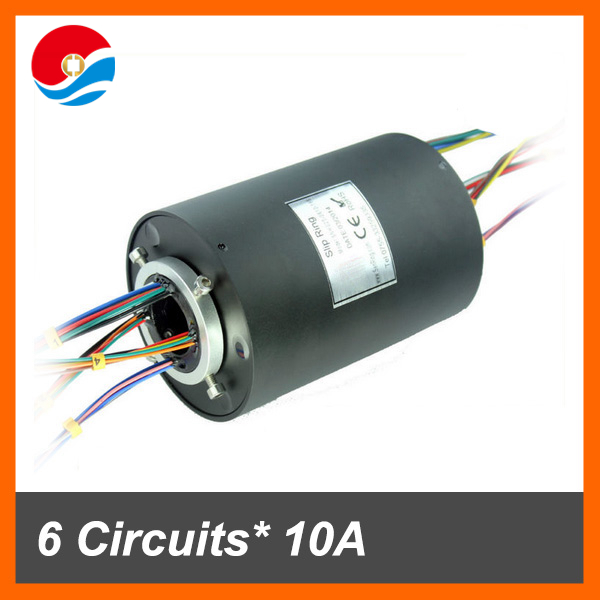

Conductive through bore slip ring 1'' (25.4mm) hole size with 24 wires contact

Min.Order Quantity: 1 Piece/Pieces
Supply Ability:50000 Piece/Pieces per Month
Port: shenzhen
Payment Terms: L/C,T/T,Western Union,paypal
Product description: Conductive through bore slip ring 1'' (25.4mm) hole size with 24 wires contact
INQUIRY

Quick Details

Place of Origin: Guangdong, China (Mainland)
Model Number: SNH025-0610-18S
Hole Size(mm): 25.4mm
Outer Dia(mm): 86mm
Circuits: 24
Volt AC/DC(V): 600Vac/240Vdc
Current(A): 10A+2A
Speed(rpm): 600RPM

Packaging & Delivery

Packaging Details:	Standard carton Package
Delivery Detail:	Sample 2 days / Order depends on quantity

The SNH025, with 25.4mm through bore size and compact 86mm outside diameter, uses SenRing's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates.

SNH025(Standard) Dimensions

Download Drawings

*Please note: Outer Diameter should be 99mm when circuits > 48

SNH025 Specifications(Standard)

Contact Material
Precious metal brush,Silver plated rings
Current Rating
10A+2A
Number of Circuits
6+18
Operating Speed
600 rpm* continuous
Lead Wire
UL Teflon® Awg28,Awg22,Awg16,Awg10 (200 mm)
Voltage
600 VAC
Operating Temp.
-40°C to 80°C
Working Humidity
60%RH
Torque
Approx. ≤8.75 g·m (for reference )
Dielectric Strength
≥1000V@50Hz between each circuit
Insulation Resistance
1000MΩ@ 600VDC
Noise
Less than 10 mΩ @ 6 VDC, 50 mA, 5 rpm
Housing Material
Aluminum Alloy
Protection
IP54

through-bore size.

Compact 86mm(99mm when circuits>48) outside diameter; smaller OD, customized on request
2,3,4, 6, 12, 18, 24, 30, 36, 48, 56 circuits are standard, others,need to be customized
Signals, 5Amp, 10Amp, 20Amp current version; >24Amp, customized on request
Speeds up to 600 rpm continuous, >600rpm, need to be customized
Steel bearings and machined shaft and housing for harsh environments
Collar mounting is standard; flange mounting is optional
Various lead exits are available
Silver plated rings are standard. Gold plated, optional.
precious metal brush are standard. gold alloy brush, optional.
Awg28,Awg22,Awg16,Awg10, 200mm lead wire are standard, >200mm is optional.
Continuous 360° rotation of power or data signals
Protection grade IP54 is standard, IP65,IP68, optional
Aluminum alloy housing material

Benefits

Transfers control and data signals
Fiber brush technology provides maintenance-free operation (no lubrication required)
Modular design meets special requirements through off-the-shelf manufacturing techniques
Customized configurations for your application
Quick shippments

Lead Wire Color Code

Circuit No.	1	2	3	4	5	5
Color	BLK	RED	YEL	GRN	BLU	WIT
Circuit No.	7	8	9	10	11	12
Color	BRN	ORG	GRAY	CLAR	WIT-RED	WIT-RED
12 circuits/per group, groups with tags

Type Application

Industrial machinery	Filling equipment
Exhibit / display equipment	Medical equipment
machining centerse	rotary index tables
Mechanical arm	Surgery lamp
heavy equipment turrets or cable reels	Revolving door
Packaging machine	Coiling machine
test equipment	packaging machines
