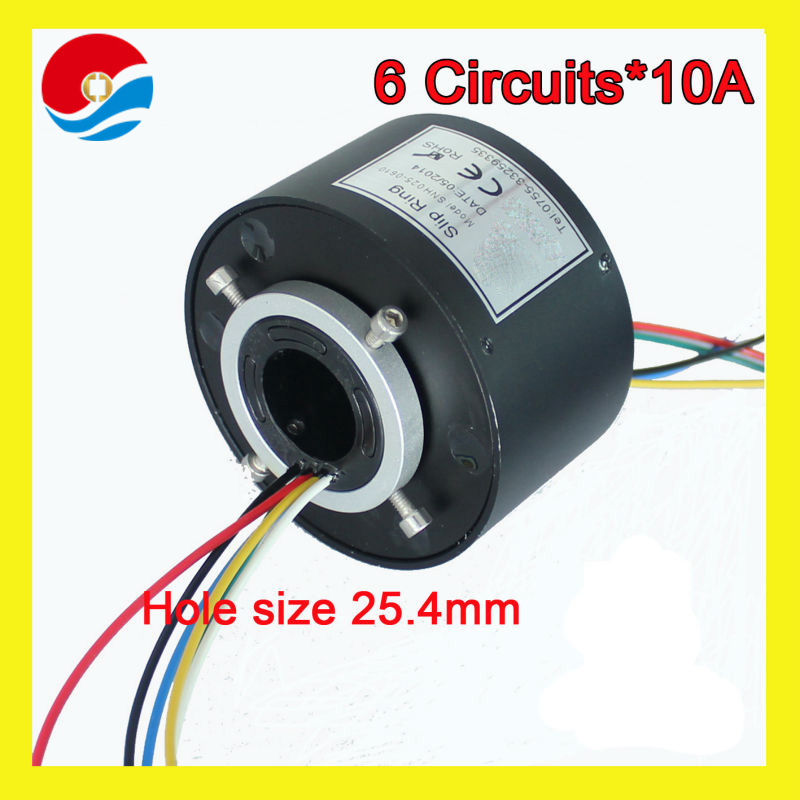

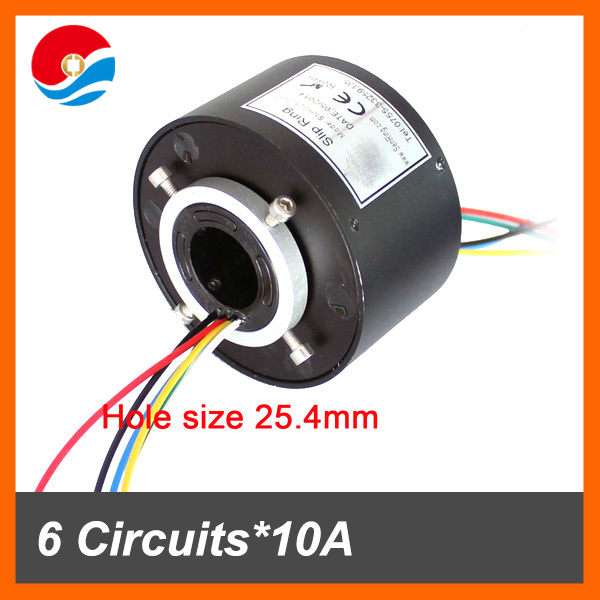

  • Slip ring assembly 6 wires/circuits 10A with bore size 25.4mm
  • Slip ring assembly 6 wires/circuits 10A with bore size 25.4mm
Slip ring assembly 6 wires/circuits 10A with bore size 25.4mmSlip ring assembly 6 wires/circuits 10A with bore size 25.4mm

Slip ring assembly 6 wires/circuits 10A with bore size 25.4mm

  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability:50000 Piece/Pieces per Month
  • Port: shenzhen
  • Payment Terms: L/C,T/T,Western Union,paypal
  • Product description: Slip ring assembly 6 wires/circuits 10A with bore size 25.4mm

Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Model Number: SNH025-0610
  • Hole Size(mm): 25.4mm
  • Outer Dia(mm): 86mm
  • Circuits: 6
  • Volt AC/DC(V): 600Vac/240Vdc
  • Current(A): 10A
  • Speed(rpm): 600RPM

Packaging & Delivery

Packaging Details: Standard carton Package
Delivery Detail: Sample 2 days / Order depends on quantity

The SNH025, with 25.4mm through bore size and compact 86mm outside diameter, uses SenRing's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates.
SNH025(Standard) Dimensions
Download Drawings
*Please note: Outer Diameter should be 99mm when circuits > 48

SNH025 Specifications(Standard)

  • Contact Material

    Precious metal brush,Silver plated rings

  • Current Rating

    10A/per circuit

  • Number of Circuits


  • Operating Speed

    600 rpm* continuous

  • Lead Wire

    UL Teflon® Awg28,Awg22,Awg16,Awg10 (200 mm)

  • Voltage

    600 VAC

  • Operating Temp.

    -40°C to 80°C

  • Working Humidity


  • Torque

    Approx. ≤8.75 g·m (for reference )

  • Dielectric Strength

    ≥1000V@50Hz between each circuit

  • Insulation Resistance

    1000MΩ@ 600VDC

  • Noise

    Less than 10 mΩ @ 6 VDC, 50 mA, 5 rpm

  • Housing Material

    Aluminum Alloy

  • Protection


  • 25.4mm(1 inch) through-bore size.
  • Compact 86mm(99mm when circuits>48) outside diameter; smaller OD, customized on request
  • 2,3,4, 6, 12, 18, 24, 30, 36, 48, 56 circuits are standard, others,need to be customized
  • Signals, 5Amp, 10Amp, 20Amp current version; >24Amp, customized on request
  • Speeds up to 600 rpm continuous, >600rpm, need to be customized
  • Steel bearings and machined shaft and housing for harsh environments
  • Collar mounting is standard; flange mounting is optional
  • Various lead exits are available
  • Silver plated rings are standard. Gold plated, optional.
  • precious metal brush are standard. gold alloy brush, optional.
  • Awg28,Awg22,Awg16,Awg10, 200mm lead wire are standard, >200mm is optional.
  • Continuous 360° rotation of power or data signals
  • Protection grade IP54 is standard, IP65,IP68, optional
  • Aluminum alloy housing material
  • Transfers control and data signals
  • Fiber brush technology provides maintenance-free operation (no lubrication required)
  • Modular design meets special requirements through off-the-shelf manufacturing techniques
  • Customized configurations for your application
  • Quick shippments
Lead Wire Color Code
Circuit No. 1 2 3 4 5 5
Circuit No. 7 8 9 10 11 12
12 circuits/per group, groups with tags
Type Application
Industrial machinery Filling equipment
Exhibit / display equipment Medical equipment
machining centerse rotary index tables
Mechanical arm Surgery lamp
heavy equipment turrets or cable reels Revolving door
Packaging machine Coiling machine
test equipment packaging machines
