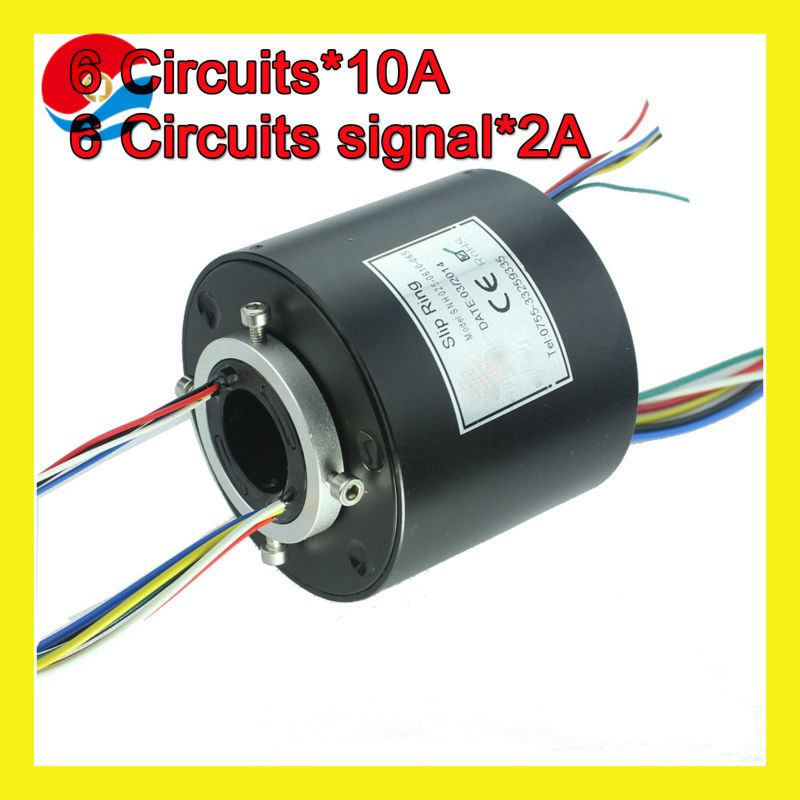

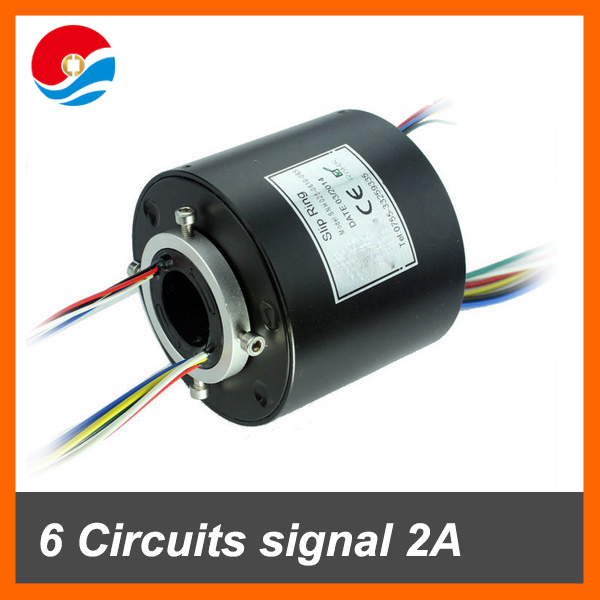

The SNH025, with 25.4mm through bore size and compact 86mm outside diameter, uses SenRing's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates.
SNH025(Standard) Dimensions
Precious metal brush,Silver plated rings
10A+2A
6 circuits 10A+6 circuits 2A
600 rpm* continuous
UL Teflon® Awg28,Awg22,Awg16,Awg10 (200 mm)
600 VAC
-40°C to 80°C
60%RH
Approx. ≤8.75 g·m (for reference )
≥1000V@50Hz between each circuit
1000MΩ@ 600VDC
Less than 10 mΩ @ 6 VDC, 50 mA, 5 rpm
Aluminum Alloy
IP51
